Tundra Bed Rack Modular Base | Full-Size Truck Bed Rack
★★★★★
4.62/5 Stars. (13 Reviews)
Price:
$1,049.00
Now:
$944.10
Code: VFSBR
Weight: 85 (lbs)
Free Shipping!

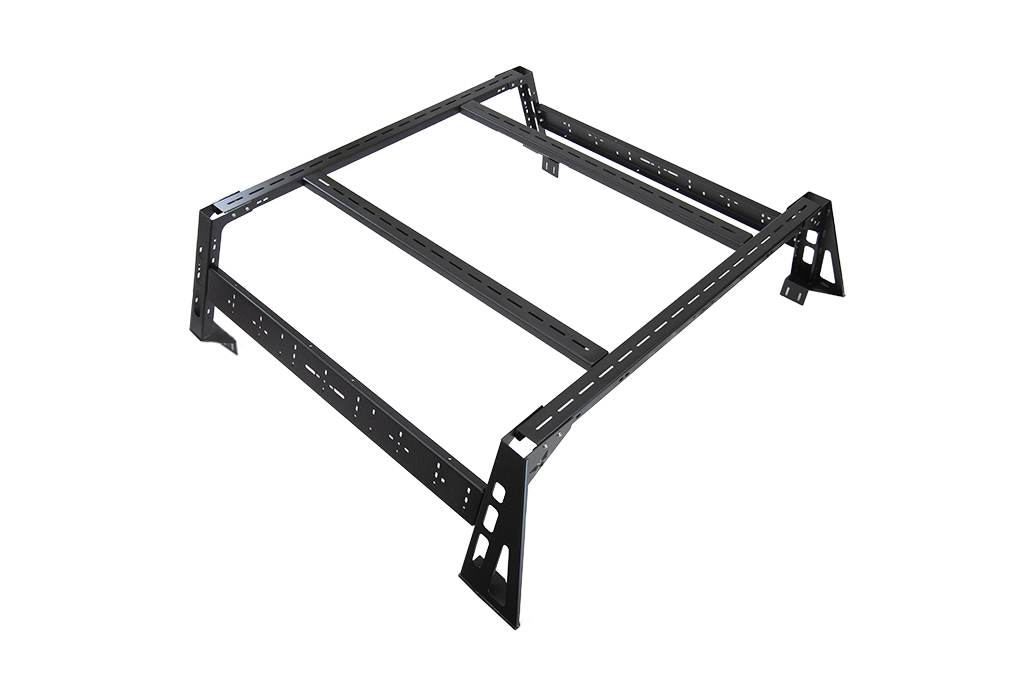

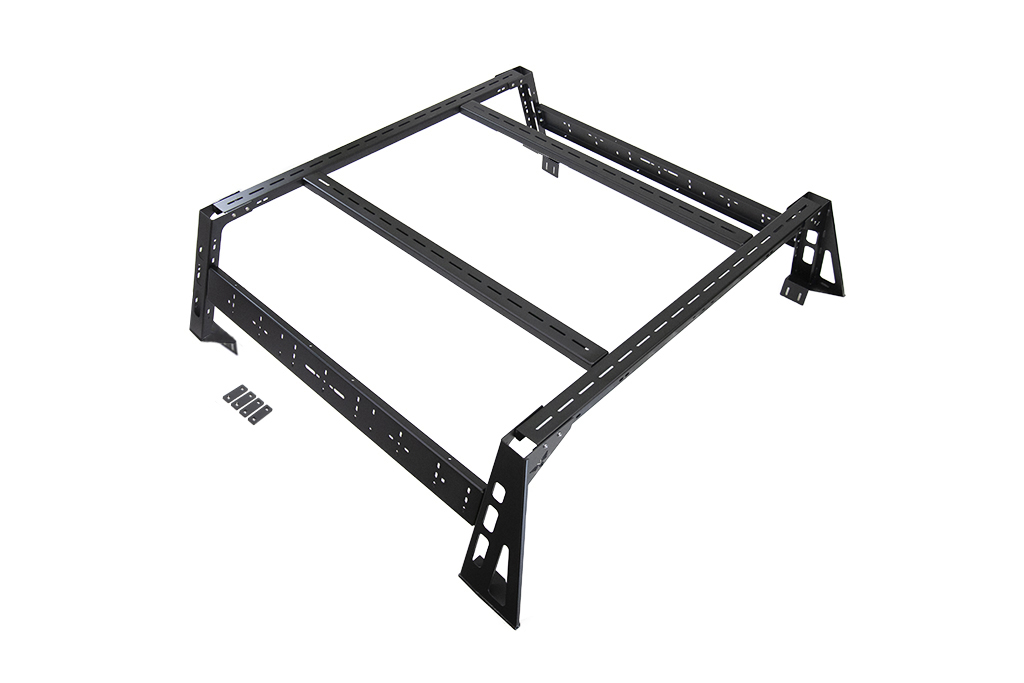

- The Victory Modular Bed Rack
Base is designed for those looking for adventure...and more
cargo space.
- CNC cut and formed from 1/8" steel
- Easy bolt together installation
- Powdercoated
- Available for 5.5' and 6.5' beds of many popular full-size trucks
- 5.5' bed version is 63" long overall
- 6.5' bed version is 75" long overall
- Adjustable for beds 62"-65" wide.
- Gen 1 Double Cab Tundra uses 5.5' bed rack (00-06)
- Tonneau cover top and mounts must fit inside bed rails to work with this rack. We've had great luck with the Access brand roll-up covers.
- Fits 2022 Tundra.
- Hardware Included
- Made in the USA
- Free shipping!

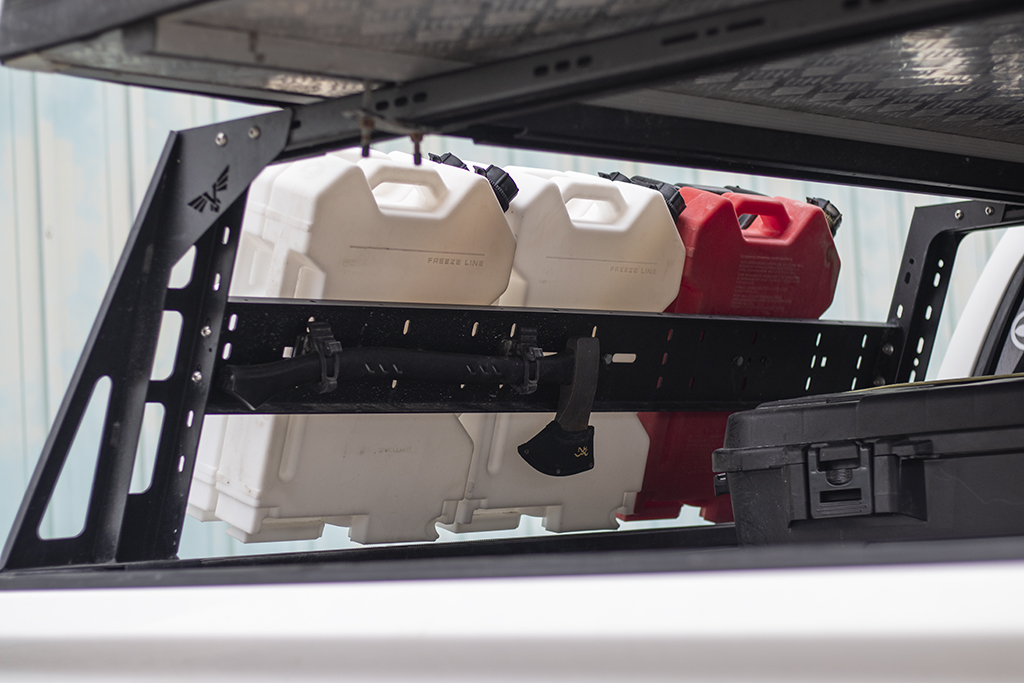

This universal bed rack system allows for mounting almost anything, (rooftop tents, kayaks, bikes, snowboards...) freeing up valuable bed space for other trip essentials. Comes coated with a 2 stage satin textured black powdercoat over durable zinc primer finish.
Looking for answers to common questions about us or our products? See our FAQ here.
45 Questions asked on Tundra Bed Rack Modular Base | Full-Size Truck Bed Rack
•
Ask us anything
Q
Calvin • 03/22/2020, 5:29:14 PM
Do you have a cab height bed rack for gen3 tundra??
A
03/25/2020, 3:11:33 PM
Product code VFSBR is offered in an 18" tall version.
Q
Todd Hafner • 04/13/2020, 10:26:50 AM
Is there a way to mount a rooftop box (Yakima/Thule) to this system?
A
04/17/2020, 6:07:22 PM
You would have to get creative. We don't offer an out of the box solution.
Q
Jeff Miller • 04/16/2020, 1:32:18 AM
Hello there. I was wondering what the static and dynamic weight ratings are for your Tundra 18x75 modular bed rack are. Thanks for your time and help.
A
04/17/2020, 6:53:08 PM
We have not done destructive testing on the Tundra bed to get this information. The rack itself can handle more weight than it has room to hold. We've had great luck with a large rooftop tent, a couple of mountain bikes, and a road shower on and off-road, plus all that weight and two adults in a rooftop tent at camp.
Q
Mason Rowley • 05/19/2020, 9:46:12 PM
Can this rack be set up with a drop in bed liner that does not currently have deck rails?
A
05/27/2020, 3:57:49 PM

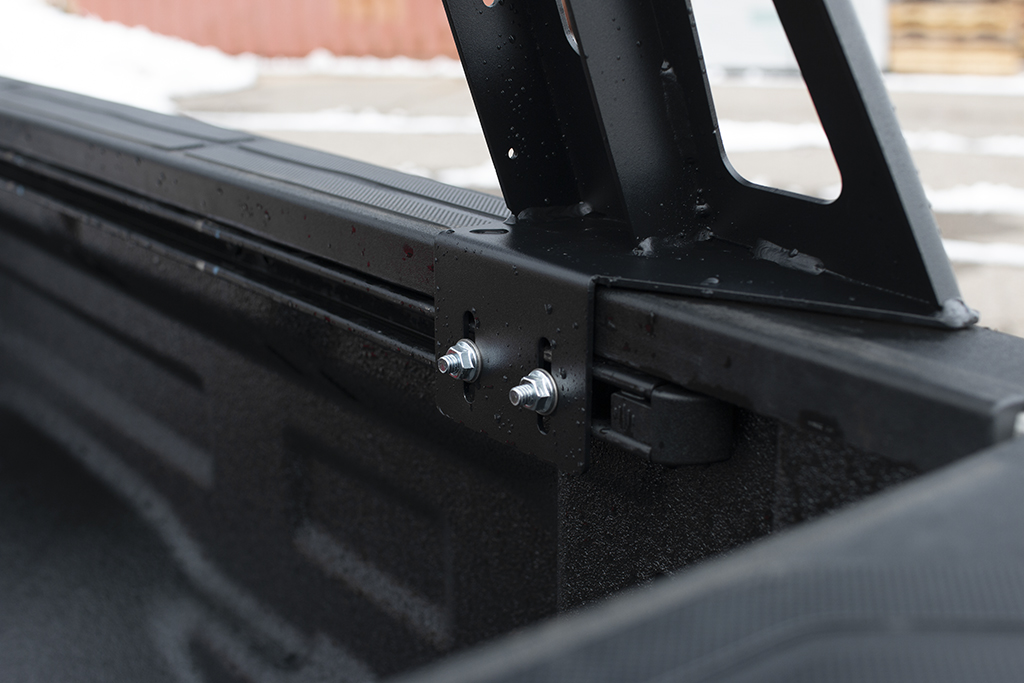

The rack comes with clamps if you don't have the bed rails.
Q
Adam p. • 06/18/2020, 0:38:44 AM
I want to use a retrax pro mx ( does not have t slots) or xr( has the t slots ) tonneau cover. If you can confirm this fits it, I'll order one asap. Retrax is a sliding tonneau cover( NO flipping. I currently have a trifold that I'm getting rid of) I like that your bed rack is advertised that it sit on the bed sides NOT using a bracket to go around the tonneau cover. The xr has t slots so that I could attach yakima racks BUT if I purchase your bed rack I would just buy the retrax MX because I wouldn't need anymore racks. Hope this makes sense. Please advise me in the correct direction. Thanks in advance.
A
06/24/2020, 5:36:22 PM
We have not test fit this with a Retrax, but it does not look like they will work together without modification to your cover.
Q
Mary Garcia • 06/25/2020, 7:23:29 PM
Does this rack will work with 2018 Toyota Tundra with LEER HF650M cover.
A
07/01/2020, 10:08:43 AM
No it will not.
Q
Neil Shipman • 07/21/2020, 3:03:53 PM
Hi,
I have a 2016 Tundra and am curious to know what your thoughts are (pros & cons) on the 18” vs 12” rack. I’ll be mainly using it for a rooftop tent and some gear to camp with.
Thanks in advance,
Neil
A
07/21/2020, 3:37:30 PM
The 18" has more room for gear underneath (or a basket) and makes a better, flatter surface for items that have to go over the cab. This height also means your RTT will cause more wind drag and make the vehicle total height taller.
Q
Drew • 07/22/2020, 9:58:05 PM
Will this work with a fly rod vault? I’m curios if it will clear the cab.
A
08/05/2020, 11:01:24 AM
You may have to space it up when you mount the fly rod vault. We have not tried at the shop.
Q
Drew Green • 09/02/2020, 8:50:38 AM
Is there an in wiggle room or will I need to cut it to make it fit on a Dodge 6’4” bed?
Thank you!
Drew
A
09/09/2020, 3:36:12 PM
We are working on a video for how to install these in different makes. Look for it on the product page soon.
Q
Drew Green • 09/04/2020, 0:05:13 AM
Hello, Will you please provide the width of the cross bars. I’m trying to find a compatible kayak rack that will work before I purchase.
Thank you!
Drew
A
09/09/2020, 3:00:07 PM

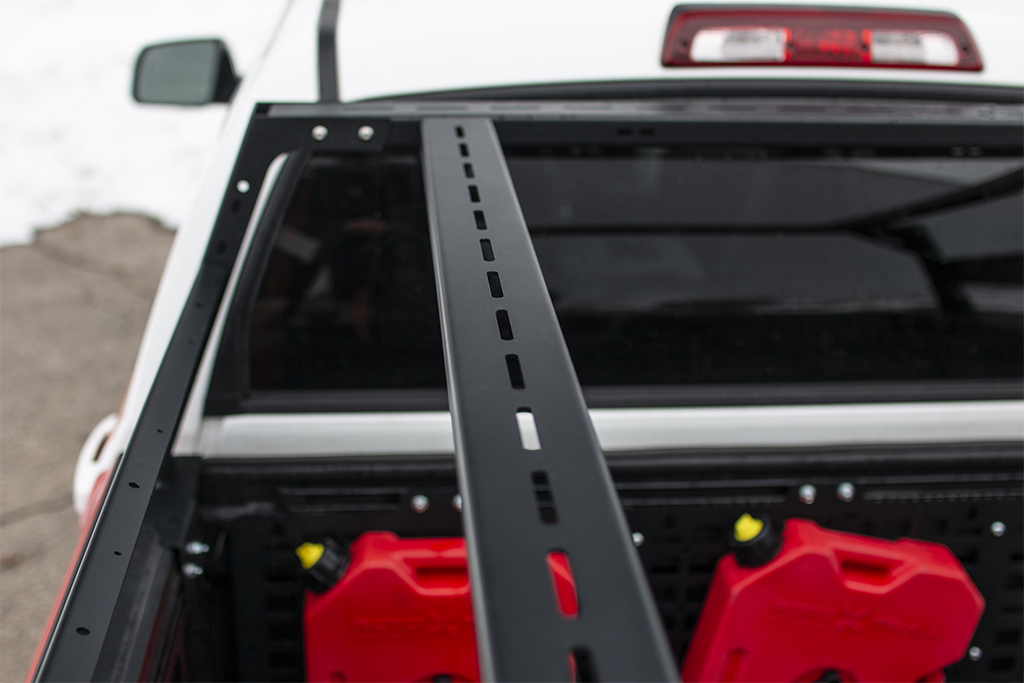

The bars are 3" wide.
Q
JayVee • 09/16/2020, 5:09:45 AM
Would a Prinsu style top rack mount to your bed rack? What solutions do you have? I don’t want to use a roof top tent.
A
09/24/2020, 11:01:43 AM
Our universal basket is a great addition on top of the rack: https://www.victory4x4.com/product/VRK-BSK-PC.html
Q
Louis • 09/20/2020, 11:47:44 PM
Will this fit on a 2020 f150 with a 5'.5" bed? Is there pinch plates that come with it? What are the measurements for each wide and narrow positions for the lateral bars? Want to make sure it will work for my 23zero rtt
A
09/24/2020, 11:35:33 AM
We are working on all of this information as well as an improved design to fit more models. Keep an eye on the product page for updates.
Q
Eddie • 10/02/2020, 5:44:36 PM
I have already purchased this for my 2016 Tundra and would like to know if this would fit a 2017+ SuperDuty
A
10/06/2020, 2:10:22 PM
There should be enough adjustability for it to fit.
Q
Dan • 10/31/2020, 0:22:18 AM
I have the 18" height rack. My ikamper still sits 2-3 inches too low to clear the cab. Do you have any risers to lift the tent just above the cab?
A
11/03/2020, 4:03:33 PM
We don't have anything specifically at this time.
Q
Jake Clay • 11/03/2020, 10:56:21 PM
What is the Free Spirit tent you have on the Tundra build Victory did and what size it? I am looking at doing the Roam Vagabond 56inch on the victory tundra crewman 5.5’ bed tall rack, and want to make sure the length was enough to be supported effectively.
A
11/10/2020, 5:20:32 PM
It's a 63" High Country.
Q
Daniel • 11/13/2020, 2:28:49 PM
I see there is a 6.5 in bed option but does this fit an 02 tundra access cab? I see it says full size but no width dimensions as my truck technically is full size but is actually more midsize then newer tundras
A
11/16/2020, 10:12:58 AM
We haven't tested any of our models on that truck yet.
Q
Sher • 02/01/2021, 2:42:53 PM
would the rhino batwing awning be able to mount on this bed rack?
A
02/02/2021, 12:30:16 PM
We don't have a specific mount solution for this awning on the rack, but it's possible with some universal brackets.
Q
Chad Mullins • 02/15/2021, 6:46:13 AM
Can I attach a 30" chase light on the back of this bed rack?
A
02/15/2021, 1:16:04 PM
Sure, but you may have to drill mounting holes.
Q
Ryan Boggs • 03/05/2021, 8:37:37 PM
Hey there. Had my bed rack for awhile now. Just looking saw the soft top cover over the tundra showcasing the new rear bumper. Is this bed rack underneath that setup or is that the soft top total setup without your guys’ bed rack?
A
03/08/2021, 1:18:58 PM
There is no bed rack under there, but we are working on a bed rack to go over the soft tops. Look for it soon.
Q
Sander • 03/07/2021, 1:00:57 AM
It appear you need a bed rail of some sort to install this rack, my Tundra doesn't have one, what should I look for to fit this and a tonneau cover?
A
03/08/2021, 1:18:58 PM
We offer clamps with this rack to use if you don't have factory mounting rails. We've had good luck with Access rollup covers and compatibility.
Q
Mike • 03/19/2021, 10:57:52 PM
I’m curious which tonneau covers work with this rack. I’m looking for the most rugged and durable. Have you tried any other than in your video?
A
03/22/2021, 6:22:06 PM
We've only tested what we talk about in the video, the Access roll-up covers.
Q
Jonathan • 04/20/2021, 2:11:50 AM
Does this tundra bed rack modular base fit on 2000 tundra sr5 4x4 truck? And does half rack (12”) mean the height ?
A
04/21/2021, 2:41:23 PM
We have tested on the DBL cab, but not the access cab. Yes 12" is 12" tall.
Q
JR • 04/21/2021, 8:10:52 PM
Wanted to buy security mounts for my rooftop nest condor xl which I will be mounting to the Tundra Bed Rack I just order. You mentioned that the cross bars are 3" wide but how thick are they? 1.5"?
A
04/28/2021, 5:52:40 PM
They are roughly 1.5" tall.
Q
Alex • 05/26/2021, 1:18:31 AM
Hi. Wondering if this rack will hold an smittybuilt gen2 Xl. I am planing to install on 2007 tundra and like to know if it has strength to hold 140lbs tent and 4 adults (gross weight 500 lbs) while in park/camp mode.
A
06/04/2021, 10:30:55 AM
Should hold that tent fine. We have had customers with that kind of weight on theirs parked without issue as well.
Q
John Campbell • 07/29/2021, 2:30:35 PM
What’s the max payload that the 20in can accommodate?
A
08/12/2021, 4:01:01 PM
We don't have official max capacity recommendations on these racks. Loading is at your discretion.
Q
Taylor • 08/19/2021, 5:01:25 PM
I love this bed rack but are there any sort of additional crossbars available. I have a Tuff Stuff Alpha hard top tent and I’m concerned it won’t work.
Thanks
A
09/02/2021, 12:29:40 PM
We don't offer additional crossbars, but you could bolt some aluminum extrusion (80/20) anywhere on top of what's there.
Q
James Shipley • 10/09/2021, 12:35:23 PM
Wondering if this rack will work with the Truxedu Pro X15 bed cover?
A
10/18/2021, 4:40:24 PM
We have not test fit with the Truxedo specifically. Any cover where the structure or the cover itself extends more than 3/16" or so over the tops of the bed rails isn't going to work. We've had good luck running the Access Roll-Up covers in both the vanish and the original. You will need to trim the bottom of the mounting rails of the cover where they go over the rack mounts inside and add some extra gasket material for a good seal. Rolling it up is possible with both heights, but it's really a PITA on the shorter rack, so take this into account.
Q
German Tugas • 11/08/2021, 12:01:22 PM
Will this fit on a truck bed with tonneau cover?
A
11/10/2021, 11:50:04 AM
Some will. Tonneau cover top and mounts must fit inside bed rails to work with this rack. We've had great luck with the Access brand roll-up covers.
Q
Travis • 11/11/2021, 6:27:14 AM
Will the rack work with the Peragon cover?
A
12/07/2021, 11:16:26 AM
We have not tested this cover. We recommend soft covers because they give some flexibility in mounting width, to fit inside the rack mounts.
Q
Clayton • 11/22/2021, 9:49:37 PM
How does this work with an Access cover? I have one already installed on my 2021 Tundra with the rails on it, I am looking for an overland rack to go with it. How do I mount them both together?
A
12/06/2021, 3:56:00 PM
The access cover will need to be removed and reinstalled after the bed rack, over the mounts on the bed rails.
Q
Victor Stejskal • 12/30/2021, 11:15:34 AM
I'm looking to run this rack with a BAK Revolver x4S, based on the Tonneau video it looks like the placement of the towers is offset enough to fit. Would you be able to provide measurement of the tower that sits on the inside on the bed cap?
A
01/04/2022, 5:34:47 PM
Please contact our tech support team and we can help with this.
Q
Roman • 01/21/2022, 0:40:23 AM
Is this rack system compatible with a softopper camper shell that is cab height?
A
01/24/2022, 1:56:29 PM
No, but we are working on an option for that.
Q
Nathanael • 02/07/2022, 6:49:29 PM
Is there a weight limit for each size of rack?
A
02/11/2022, 3:57:40 PM
We have no official weight limits for these racks.
Q
Brandon Smith • 05/19/2022, 1:16:53 PM
What is the weight for the full height bed rack for the 14 + Tundra
A
05/19/2022, 2:20:20 PM
About 85 lbs.
Q
Jackson Leonard • 06/12/2022, 11:47:22 PM
Will this rack be compatible with my 22 tundra double cab?
A
06/22/2022, 2:01:57 PM
No sorry, 00-21 only.
Q
Connor • 06/18/2022, 2:42:16 PM
Does this bed rack work with the Tyger T3 trifold?
A
06/22/2022, 2:01:57 PM
It does not.
Q
Tyler • 07/09/2022, 11:58:42 PM
Will this fit an 03 tundra access cab?
A
07/18/2022, 1:20:20 PM
Yes
Q
Omar Martinez • 07/26/2022, 3:31:42 PM
Will this fit the 2022 tundra?
A
08/08/2022, 12:34:10 PM
We have not yet test fit on the 22, but will have one soon!
Q
Omar Martinez • 08/24/2022, 5:31:09 PM
Will this fit the 2022 tundra models?
A
08/25/2022, 9:17:28 AM
We have not yet test fit on a '22, but will have one very soon!
Q
Jonah T • 01/24/2023, 11:28:54 AM
I have a bak flip tri fold hard cover tonnaeu. Will this fit the bed while still allowing he tonnaeu to be on?
A
01/30/2023, 4:39:19 PM
They are not compatible together.
Q
Jonathan Jacobi • 05/16/2023, 2:31:04 AM
Will this fit a 2023 tundra trd pro?
A
05/22/2023, 5:30:40 PM
Yes, this bed rack will fit the 2023 Tundra.
Q
Carlos • 07/22/2023, 6:55:27 PM
Where can get the crossbars to support an RTT?
A
11/22/2023, 12:26:22 PM
Please reach out to our support team.
[email protected]
Q
Thaddeus • 02/25/2024, 11:08:52 PM
Is there a way to make this work with an 8 foot bed?
A
03/01/2024, 10:35:43 AM
This rack can be mounted to an 8 ft. bed, it just wont run the full length of the bed.
Q
Sam • 05/04/2024, 10:12:07 PM
Do you have an install video for the modular rack and the Access Soft Rollup Tonneau Cover on a Tundra or other truck without the bed rails?
A
05/20/2024, 4:58:18 PM
Not of the installation specifically, but this video may help when installing the two together.
https://youtu.be/n5yEuMmMdXo
Q
Joseph • 06/09/2024, 10:50:35 PM
Does this rack fit a 2019 tundra?
A
10/08/2024, 11:23:52 AM
Yes, it fits a 2019 Tundra.
0
0
2
1
10
Austin (Washington state) | May 13th, 2022
Extremely easy to install and my RTT fits perfectly on it. Very happy with how it’s held up, very well made planning to purchase more quality parts from Victory 4x4
Derek Whittaker (Pennsylvania) | August 6th, 2021
I was able to install the 5.5' version on a 2021 Sierra AT4 using the Colorado mounts. However, it did require drilling holes through the main braces to attach to the mounts. Otherwise, everything else was perfect and went smoothly. I was also able to reinstall my access vanish cover with it on. Highly recommend!
Jeff (Vancouver, WA) | May 6th, 2021
I have the full size and have been happy with it so far. I have the CVT 60" Mt. Hood RTT on it. I was very pleased that the mounting tracks on the tent fit perfectly with the rack. Have RotoPax and Maxtrax mounted. Quality of the rack seems solid and sturdy. I received mine with some cosmetic damage but the customer service was awesome.
Ryan Boggs (Wisconsin) | March 7th, 2021
Awesome rack. First item I purchased from victory. Went together easily. Looks awesome on the tundra.
Brandon Smith (Dallas Tx) | January 5th, 2021
I got the full height rack for my 2020 Tundra and it works great. Rotopax mounts work great with it (holes line up when you pull the round plate off the mounts). Rack is very solid and well made. Love the design of it and looks much better than most racks out there. I got the cargo basket for the top since I’m not running a RTT and everything works great together. Looking forward to getting a roof rack from them soon.
Jake wasley (Winchester California) | July 25th, 2020
This bed rack is very high quality, easy to put together made very well and has held up very well, if you want a good quality bed rack this is the one to get!
Ed Preston (Huntsville, AL) | May 27th, 2020
Order arrived as advertised with more than adequate packaging. No damage, scratches, etc. Unboxing was probably the most complicated part of the process. Quality built product with great finish. Easy assembly and fits perfect on my Tundra. Wish I would have ordered the roof rack too...
Blane Maddox (Virginia) | December 17th, 2019
I stumbled on Victory 4x4 at Overland Expo East this year, fell in love with their products and immediately hooked up my Tundra. The bed rack is such an easy install, videos are simple to follow, and the rack functions just as it should. Best looks on the market too! My Tundra is covered in the Victory products.
Note From Victory 4x4: Glad you found us at Expo, thanks for the review!
Jon Scott (NY) | October 26th, 2019
Installed on my 2019 Ram Rebel without ramboxes, easy install, super solid and plenty of mounting points for accessories. Highly recommend.
Curt Melton (Tennessee) | October 23rd, 2019
Amazing product, packaged very well. Victory was very quick to respond to questions, overall very happy would recommend.
Please note: Install videos are meant to be used as a guide, and aren't always the most up to date information on product installation and improvements.
Please be sure to read the PDF installation instructions as well.
Please be sure to read the PDF installation instructions as well.
Related Products
Bed Rack Bike Mount
$199.00
Bed Rack Traction Board Mount
$129.00
Roof/Bed Rack Hi-Lift Mount
$89.00
Tundra Bed Stiffeners | (07-21)
$159.00
Universal Tire Mount
$169.00
