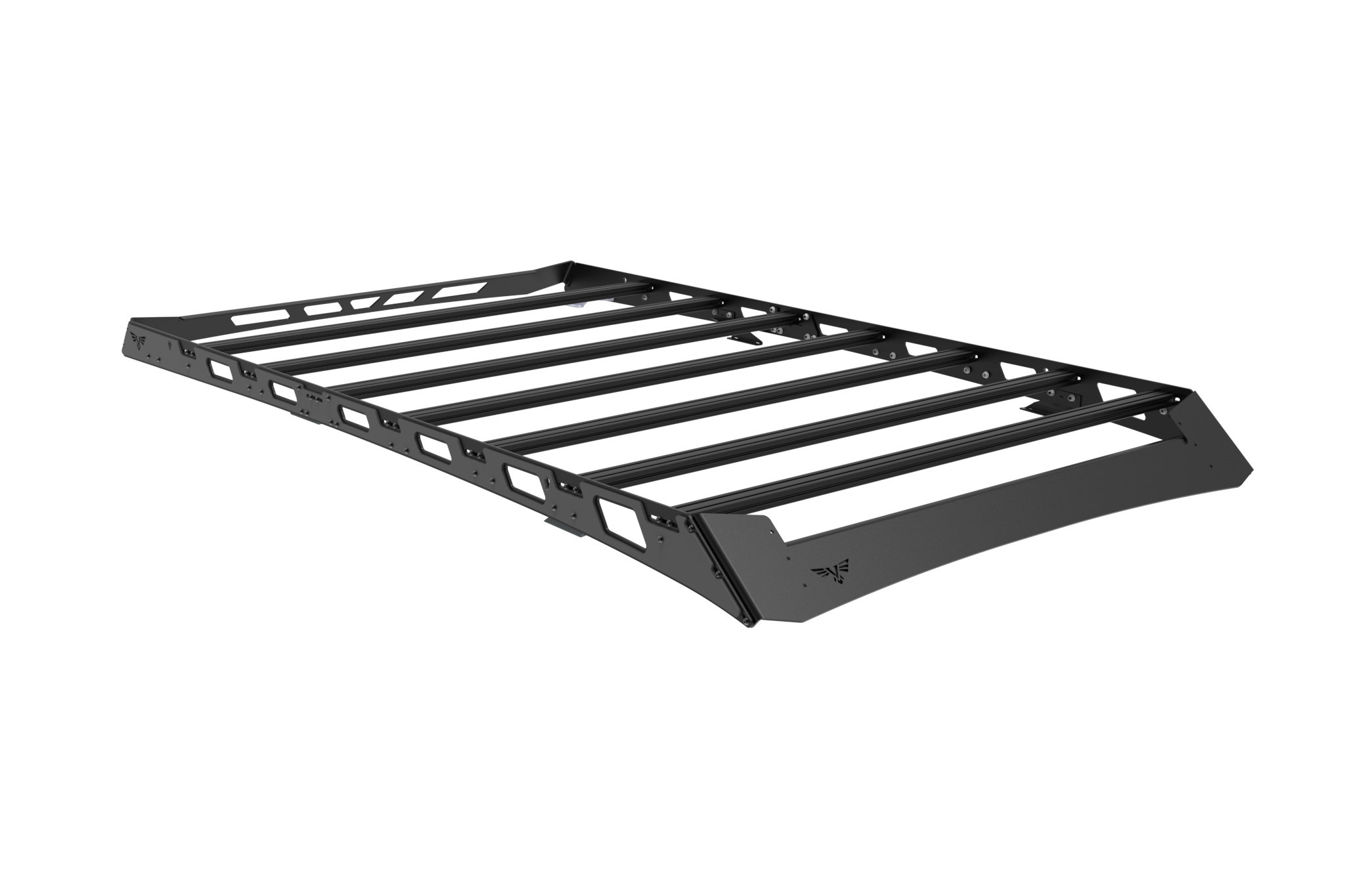

Land Cruiser Roof Rack | 100 Series - Lexus LX 470 (98-07)

★★★★★ ★★★★★ 4.8/5 Stars. (5 Reviews)
  • Land Cruiser Roof Rack | 100 Series - Lexus LX 470 (98-07)
  • Land Cruiser Roof Rack | 100 Series - Lexus LX 470 (98-07)
  • Land Cruiser Roof Rack | 100 Series - Lexus LX 470 (98-07)
  • Land Cruiser Roof Rack | 100 Series - Lexus LX 470 (98-07)
  • Land Cruiser Roof Rack | 100 Series - Lexus LX 470 (98-07)
  • Land Cruiser Roof Rack | 100 Series - Lexus LX 470 (98-07)
  • Land Cruiser Roof Rack | 100 Series - Lexus LX 470 (98-07)
  • Land Cruiser Roof Rack | 100 Series - Lexus LX 470 (98-07)

Price:
$1,049.00
Now:
$944.10



Code: V100RK-F

Weight: 49 (lbs)


Free Shipping!

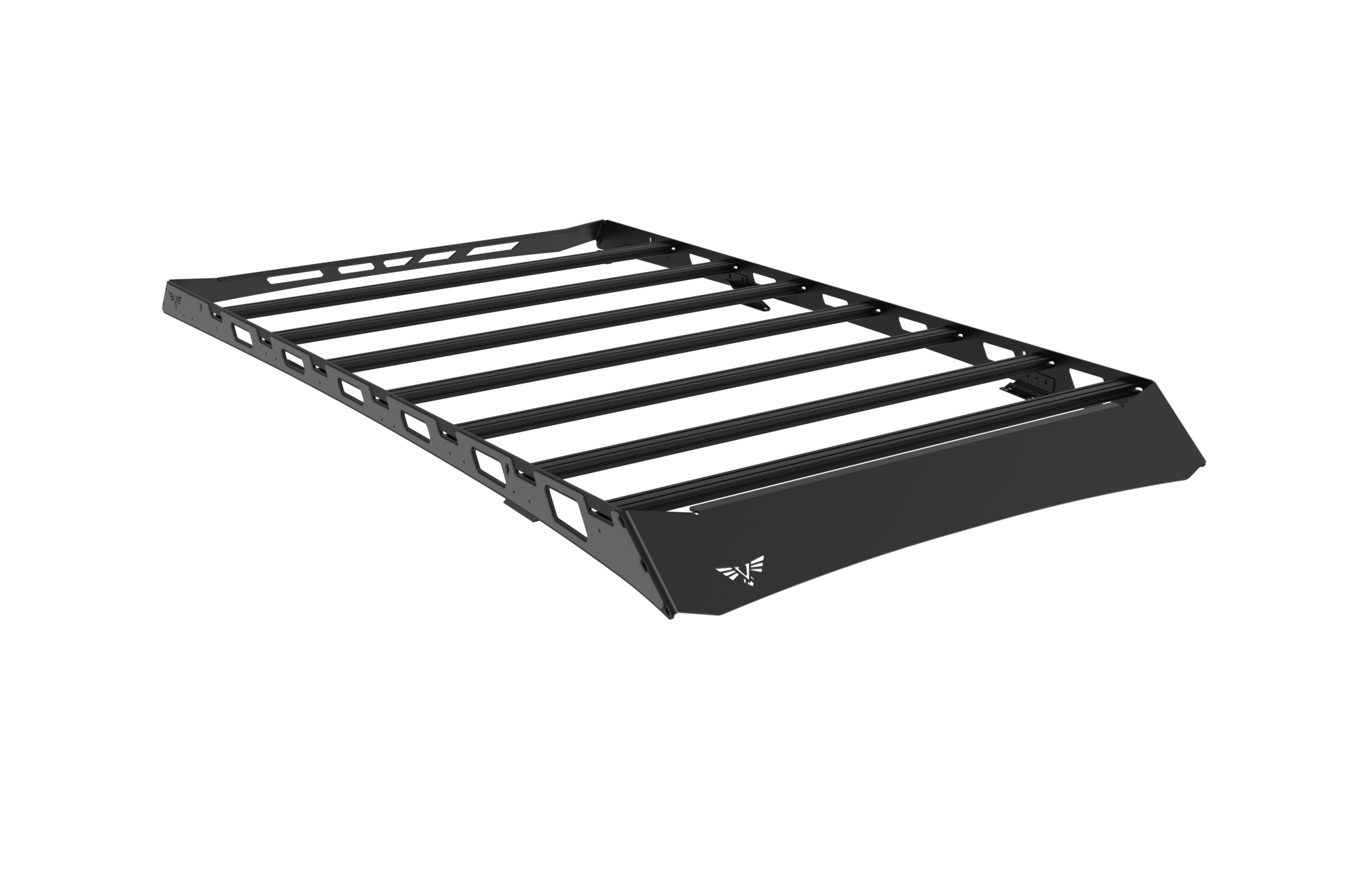

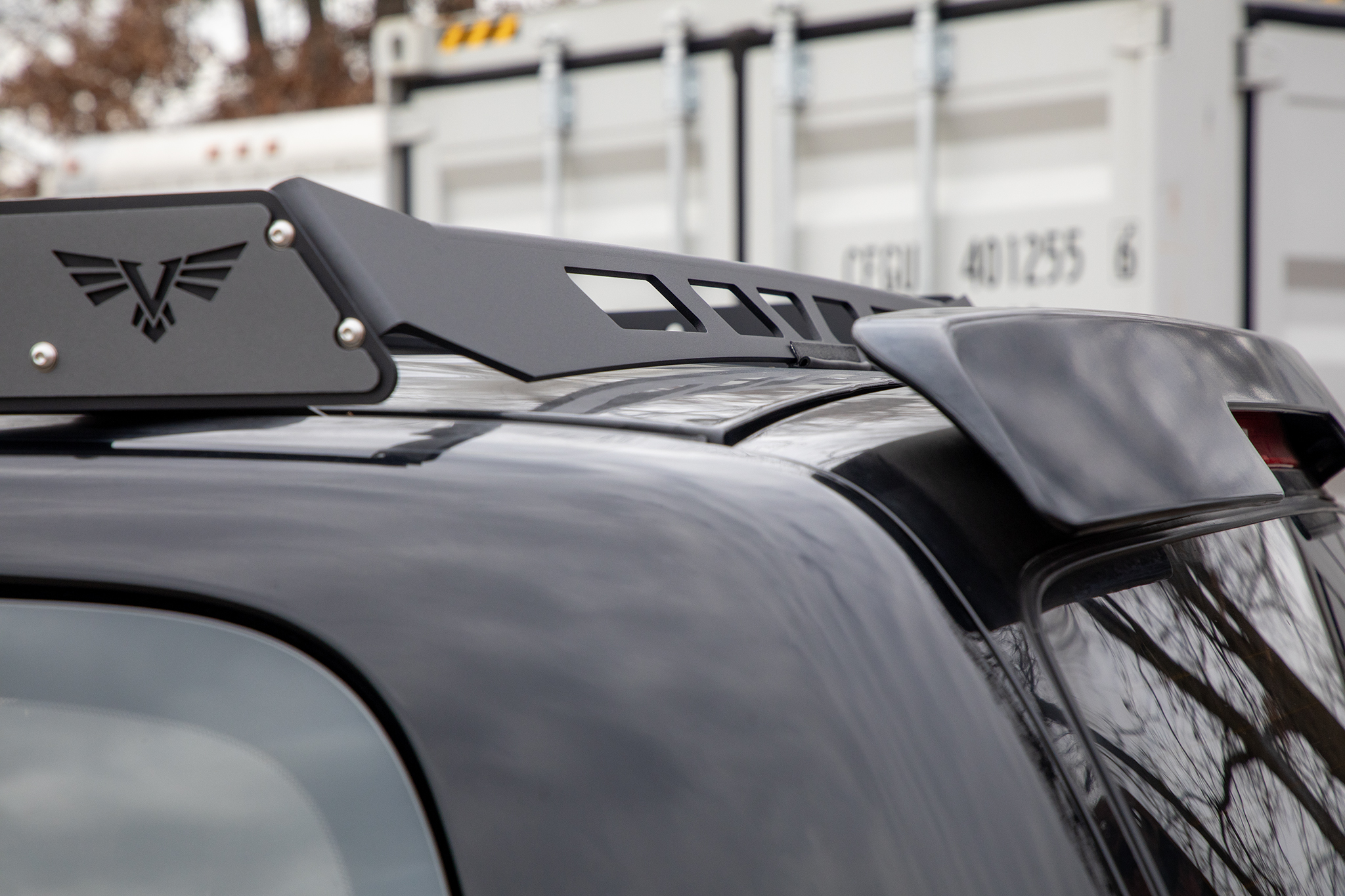

      This roof rack system allows for mounting almost anything, freeing up valuable cargo space for other trip essentials. Comes coated with a 2 stage satin textured black powdercoat over durable zinc primer finish.

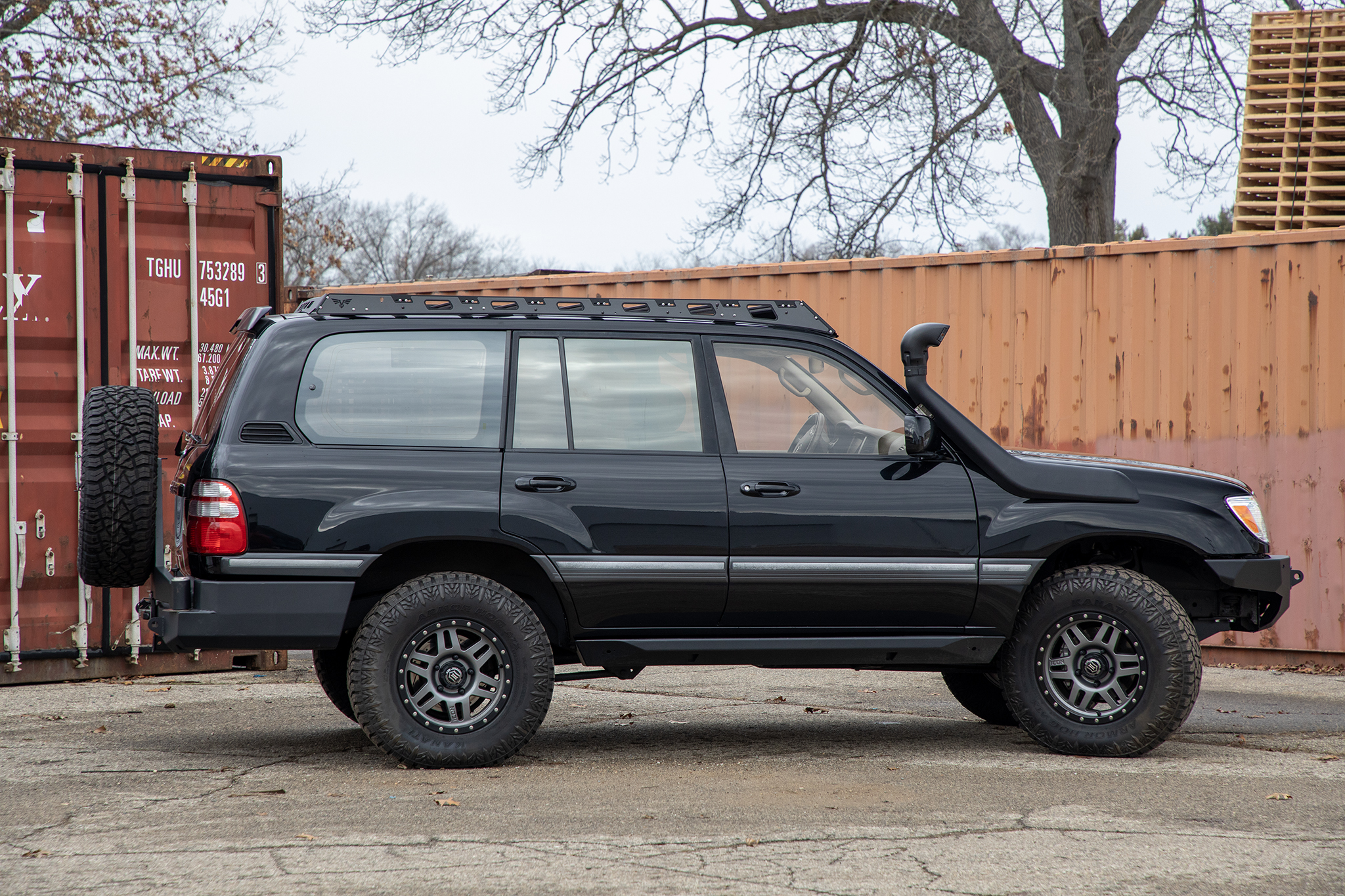

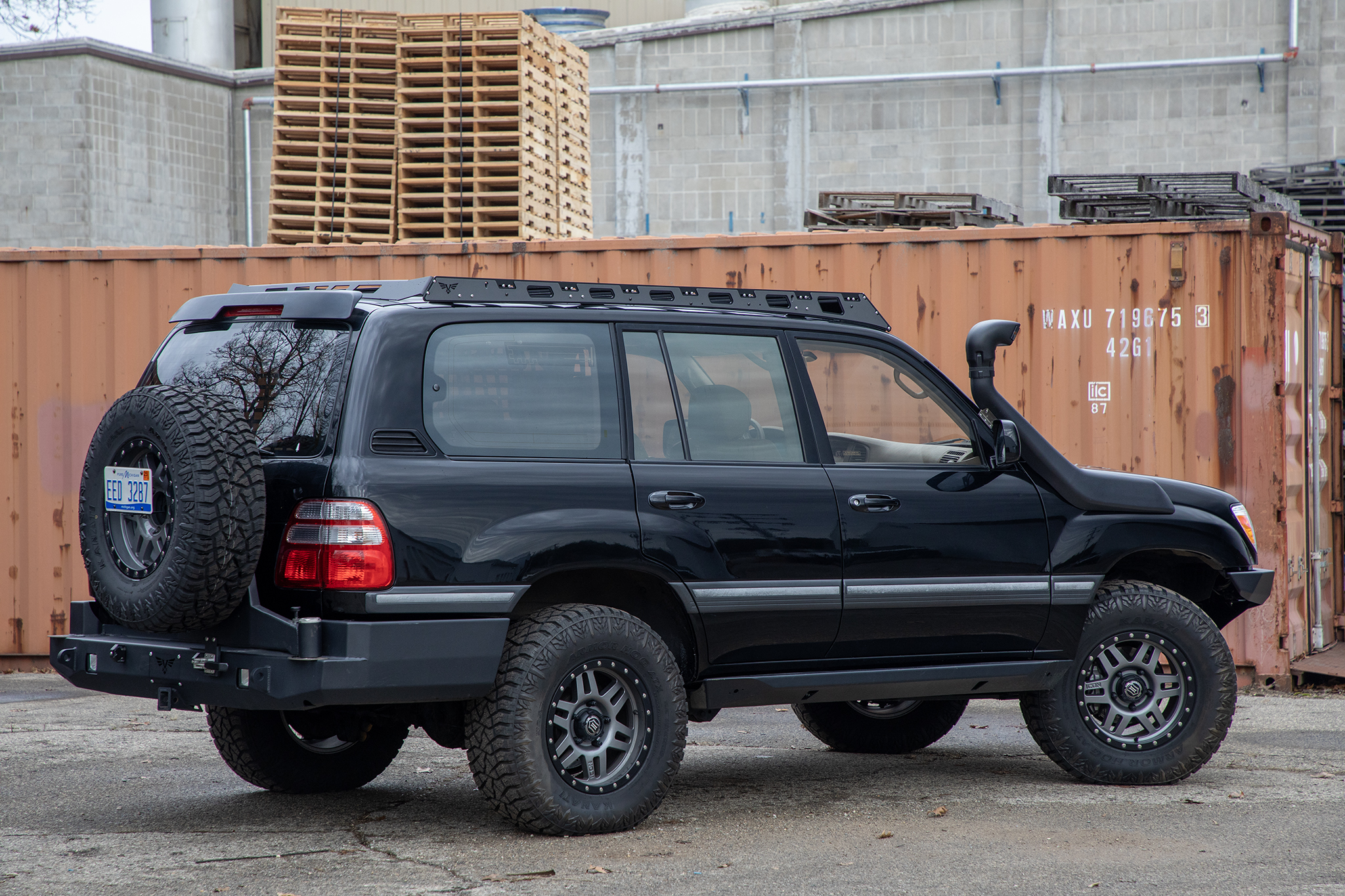

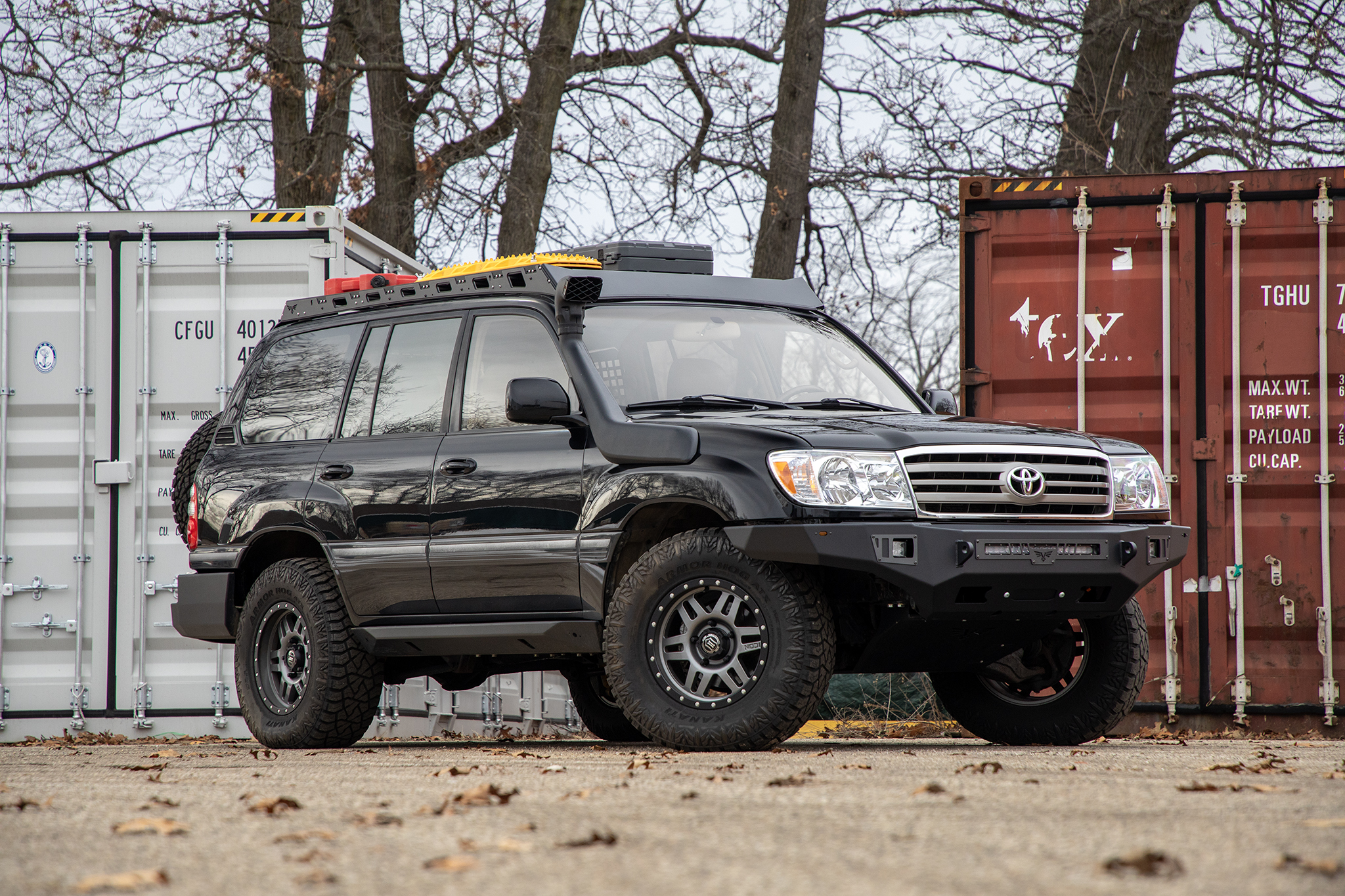

      Fits 100 Series Toyota Land Cruiser and Lexus LX 470 (98-07)

    • CNC cut and formed from 3/16" aluminum (steel mounting brackets) with extruded aluminum rails
    • Easy bolt together installation
    • No drilling required
    • Available with or without 40" lightbar cutout
      • Lightbar cutout version includes light bar mounting brackets
      • Cutout fairing designed for 41.25" max lens housing width single row LED light bar. Up to 43.5" (mounting stud width) bar will fit with our mounts, but trimming of the fairing will be required

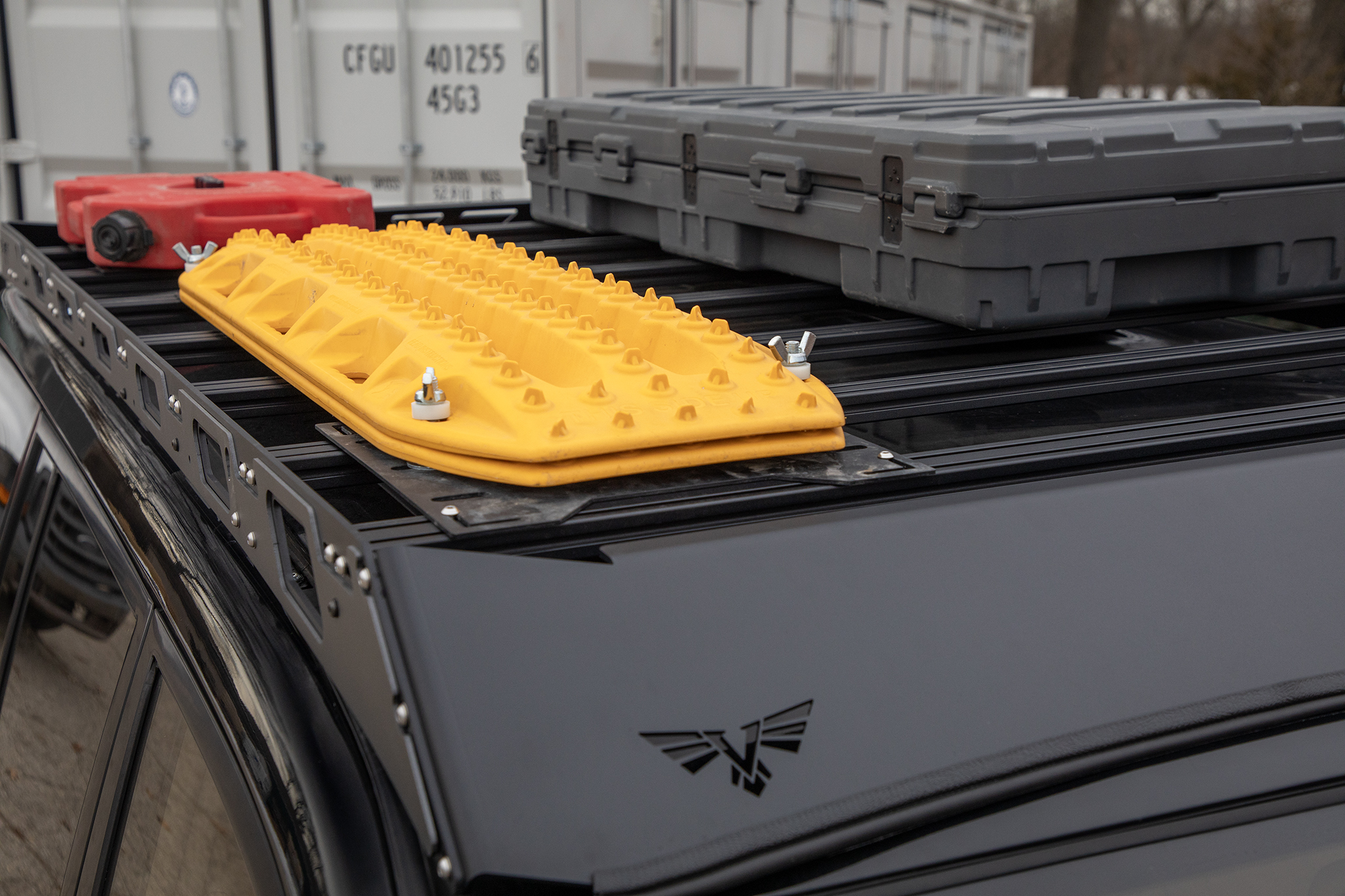

    • Milled T-nut access points
    • Sunroof tilt and sliding function works with racks
    • Fairing Edge Trim Included
    • Powdercoated
    • Hardware Included
      • Black stainless hardware available, see related products
    • Made in the USA
    • Free shipping!
    We recommend using paint protection film under the front and rear fairings, where they contact the vehicle. This will prevent dirt and debris from scratching the paint over time.

Looking for answers to common questions about us or our products? See our FAQ here.

15 Questions asked on Land Cruiser Roof Rack | 100 Series - Lexus LX 470 (98-07)

Ask us anything



Q Kris B. • 04/14/2020, 2:58:40 PM Will you guys be making one for the 80 series?
A 04/17/2020, 6:46:58 PM We don't have plans at this time for the 80 series.
Q jimmy santos • 04/15/2020, 8:28:06 PM Hello, Will this fit a 2012 Toyota Sequoia?
A 04/17/2020, 6:53:08 PM Not to our knowledge.
Q Jim Joe • 04/20/2020, 3:24:12 PM What size is this rack?
A 04/20/2020, 3:24:22 PM The usable area is roughly 77 x 51"
Q Waheed • 08/03/2020, 1:46:55 PM What is the total weight and size of the package that it comes in? Thank you
A 08/05/2020, 12:21:56 PM Two boxes. 88" x 5 x 3 4 lbs and 56" x 9 x 6 15 lbs
Q Najeebullah Safi • 08/04/2020, 6:41:30 PM Do you deliver Land Cruiser Roof Rack| 100 series Land cruiser (98-07) to UK??
A 08/05/2020, 11:51:45 AM We currently do not ship to the UK.
Q Nicholas Burgher • 01/16/2021, 10:08:51 PM I hope I'm not missing this in the description but how many cross bars come with the rack?
A 01/20/2021, 10:01:18 AM 7 crossbars
Q thomas reilly • 02/03/2021, 5:41:13 PM How much weight can this rack hold ? will it hold a roof top tent ?
A 02/08/2021, 11:48:56 AM Toyota rates the roof with a factory rack at "Max load 150 lbs evenly distributed." Our rack itself can handle significantly more weight than that, and we've had 250 lbs dynamic weight on it without issue, static capacity is certainly well above that. All these weight will be at your discretion as they are above Toyota "recommended" capacities. If you need more information please contact us directly at [email protected]
Q Andrew Gilbert • 02/07/2021, 10:17:22 PM What is the amount of weight the rack can hold
A 02/08/2021, 11:48:56 AM Toyota rates the roof with a factory rack at "Max load 150 lbs evenly distributed." Our rack itself can handle significantly more weight than that, and we've had 250 lbs dynamic weight on it without issue, static capacity is certainly well above that. All these weight will be at your discretion as they are above Toyota "recommended" capacities. If you need more information please contact us directly at [email protected]
Q Dave D • 03/05/2021, 1:31:32 AM Your weight under item code number is 49lbs, but your Q&A 8-5-20 answer says it ships in 2 boxes: a 4 lb and 15 lb. Shouldn't the 4 # be 34#? You also state 7 rails, but in a couple of your pictures I count 8 between front and rear fairings. Which is right? What cost discount will you give me if I order with no SS or SS anodized fasteners?
A 03/05/2021, 3:59:09 PM Yes, should be 49lbs total. The 100 Series rack has 7 crossbars, looks like the page had an incorrect photo. All racks will come with stainless hardware, black hardware can be added here if you'd prefer! https://www.victory4x4.com/product/046-0061.html
Q Steve • 06/29/2021, 12:08:23 PM Do you know if Thule or Yakima roof cargo boxes can be mounted directly onto the cross bars?
A 07/08/2021, 1:33:12 PM We have not tested these at the shop. Those boxes and mounts are typically pretty universal.
Q Todd Henley • 08/28/2021, 11:03:59 PM Hello, how much taller is this than the standard Toyota factory roof rack, i want to make sure it will still fit in my garage before i buy and install, thanks!
A 09/02/2021, 4:11:46 PM The top of the rack is 2" above the top of the roof. We don't have a factory rack to measure, but we assume ours is lower.
Q Scott R • 11/21/2021, 1:10:47 PM How is the wind noise and the mileage drop?
A 12/01/2021, 11:28:01 AM Additional wind noise and decreased mileage aren't really noticeable.
Q Hunter • 12/27/2021, 10:14:40 PM Is there a way to install the light bar without drilling extra holes in the roof? Or did you all drill another hole when installing it?
A 12/28/2021, 10:36:12 AM There is no drilling required for the roof rack. You can run the lightbar wiring down the side of the windshield trim down under the hood.
Q Aaron • 01/30/2023, 10:56:14 PM I’m looking to add an aluminum clam shell rooftop camper and the dimensions are 130cm by 210cm. Will it fit down into the recessed area in the roof rack? Thank you!
A 02/03/2023, 1:53:04 PM The area in side the sides of the rack is roughly 196mm x 129.5mm. It would be close. You could always slightly elevate the tent with spacers or our tent brackets: https://www.victory4x4.com/product/VRKRTT.html
Q Eric H • 04/11/2023, 8:42:27 PM What is the tubular dimension of the cross bars?
A 04/17/2023, 7:24:12 PM 1" x 2"
★★★★★ ★★★★★
4.8/5 Stars out of 5 Reviews
1
0
2
0
3
0
4
1
5
4
Victory Roof Rack 100 Series
(OH) | June 1st, 2022
Well machined and designed. Not too terrible to put on, I recommend loosening the crossbars when trying to mount the brackets to the roof. Great customer service, looks great after its done!
1999 LX470 install - 4.5 stars.
(Alabama) | April 28th, 2022
I installed this last night. Looks great, and is very very sturdy once all bolted up and tightened. Directions for install could be a little bit better. My advice to folks installing would be to get the rack assembled and up there and then start with the rear mounts- there's only one place to go, there. From there, the middle mount has three bolt options, of which once you have it located with the rack, it'll be obvious which two you need. And from there, it'll again be very clear where the front mounting points should go. I tried it the other way, starting at the front, and because I had the front left and right "legs" reversed (you'll see... actually pretty easy to do), nothing seemed to fit. Unbolted, reassessed, started in the rear, everything lined up from there and it was all completely done in under an hour. But I spent probably an hour before that scratching my head, measuring stuff, and wondering if I somehow got the wrong parts in box. No, dummy, user error. Powdercoat quality, logo cutouts, and hole accuracy is fantastic - this is a well-engineered piece, all very cleanly made. I am still tweaking height and front/ rear panel a little. I have the rack up pretty high still and the front panel all the way down (trying to keep from having air flow under the bulb seal, and found this morning that it actually interferes with the driver wiper just a little bit at the top of its arc. Could be that I have a 1" too long wiper blade, or could just be a little something to watch out for. Really no big deal, but curious if that's something V4x4 is aware of- another 5-10* of increased angle on the front panel could help the fit, but it's workable as is, even if that just means buying a little shorter wiper blade. With the very minor install stuff aside (much of which is user-related)- the rack looks really great on the truck, and will provide a nice, sturdy base for all the stuff that'll eventually get chucked up there. Soon as my kid saw it he started looking at kayaks and J-hooks, so... be warned. The rack is *absolutely* just the start of the money flying out, lol.
2000 LC
(South Tx) | November 21st, 2021
Awesome rack, built and installed by myself. Rack is very sturdy, nice fasteners bolts nuts etc. I am 220lbs and can get up there and walk around. I have not installed a light bar yet, but it seems like it will fit up there nicely. The rack has been on my LC for about 3 months. I have several pictures but website doesn’t have a place to upload them?
Nice rack!
(UT) | April 21st, 2021
Great quality, assembly was straight forward, quieter than expected on the road, and held up to the rigors of pretty heavy wheeling a trip to Moab carrying a large Yakima box and heavy case. Faced some pretty stiff winds and all held up well. Only complaint is I wish it was 3" longer in the back, but minor complaint at best. Excellent product.
100 Series Roof Rack Install on 2000 LX470
(Georgia) | March 30th, 2021
Customer Service - 5/5! Form - 5/5! Function - 5/5! Fit - 3.5/5 I ordered the 100 Series Roof Rack w/o the light bar cutout as part of the Victory 4x4 Black Friday Sale to install on my 2000 LX470. Both packages the roof rack comes in arrived together and earlier than estimated. Everything was packaged well and the quality of the parts was great, except for one bracket that was off by about 15 degrees. The Victory 4x4 Customer Service Team replaced the bracket very quickly and shipped a new one same day for me. The rack was relatively easy to install and the instructions were pretty straight forward. The orientation of the Left and Right brackets for each mounting position Front, Middle, and Back was a little more challenging than expected, but I was able to figure it out with a tape measure. Everything installed well, lined up right, and looks great! My one complaint is that there is minimal up and down adjustability. I have the rack "all the way up" and there is still only about 1/8" - 1/4" between the rack and the luggage bars on my roof. This really isn't a big deal, except that in heavy wind the deflection in the rack sometimes allows it to hit the roof luggage rails and make some noise. I would highly recommend the product and Victory 4x4 for their craftsmanship and especially customer service! Hope to pick up some of their other items in the future.

ACCESSORY MOUNTS

A wide variety of accessory / lighting mounts available and the list is growing!

See related products below!

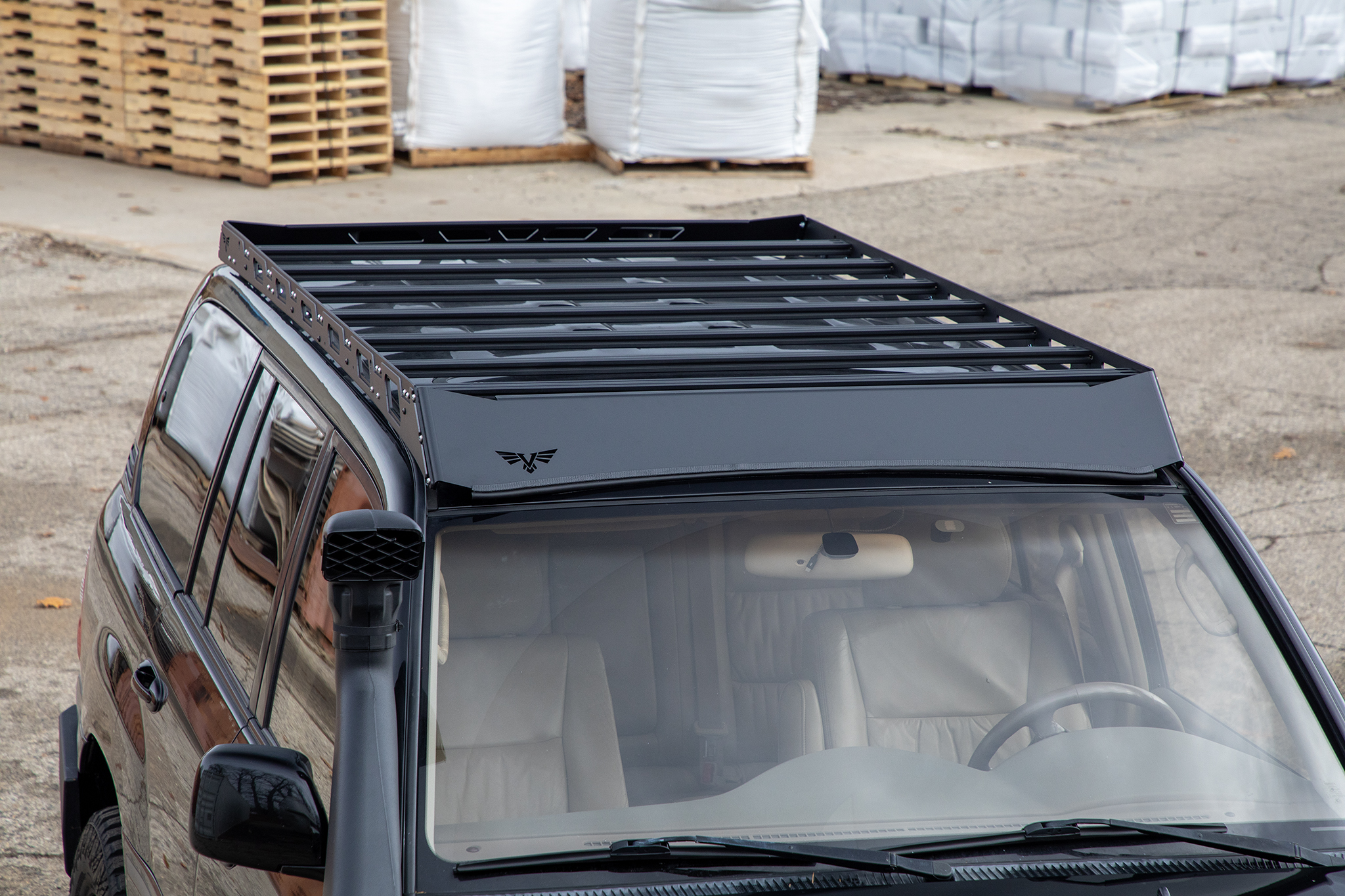

SUNROOF COMPATIBLE

Allows for full functionality of all standard sunroofs



BUILT FOR ADVENTURE

Designed with your outdoor gear in mind.



Please note: Install videos are meant to be used as a guide, and aren't always the most up to date information on product installation and improvements.
Please be sure to read the PDF installation instructions as well.
